Overlay Button

Overlay Button

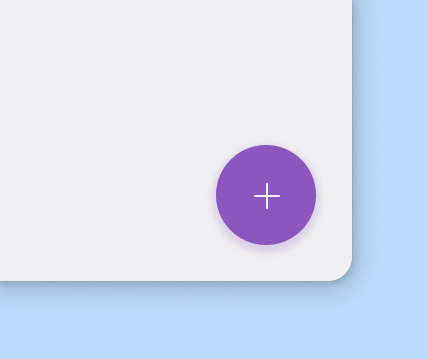

Use a Overlay Button for the most important action on a Window. The Overlay Button appears in front of all other content on Window, and is recognizable for its circle shape and icon in the center. Only use a Overlay Button for presenting a Window's primary action. The Overlay Button can be aligned left, center, or right.

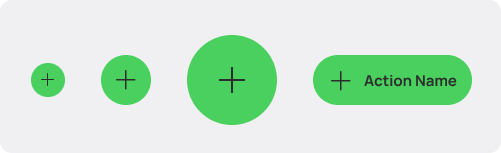

There are 3 sizes of Overlay Buttons, Normal being the default:

  1. Normal (50×50px, icon: 24px)
  2. Small (34×34px, icon: 16px)
  3. Large (90×90px, icon: 32px)

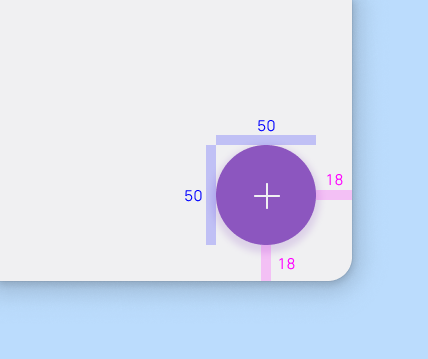

Geometry

The Overlay Button is typically shown in a circle container, and the coloring of its background should be the app's accent color, and should contrast well with the background.

  • It should by default be spaced 18px from all sides.
  • Don't layer things on top of a Overlay Button.
  • Ensure that the Overlay Button contrasts very well with the area behind it.

An icon in an Overlay Button should be understandable and clear. On hover, Overlay Buttons should display a tooltip showing what it does in one or 3 words maximum. It shouldn't contain notifications or actions seen elsewhere.

  • Use clear and simple icons, such as list-add-symbolic, chat-message-new-symbolic, or document-edit-symbolic. Ensure that a tooltip is available for clarity.
  • Don't use confusing or open-ended icons that suggest less common actions.

An Overlay Button can trigger an action either on the current Window, or it can perform an action that creates a new Window. It promotes an important, constructive action such as:

  • Create
  • Favorite
  • Share
  • Start a process

Small Overlay Button

This type of Overlay Button is used for secondary, supporting actions.

  • If multiple important actions are necessary, use a small Overlay Button for those.
  • Don't use multiple normal-sized Overlay Buttons as they might compete for attention.

Large Overlay Button

This type of Overlay Button is used when the layout calls for a prominent action, when a larger footprint would aid in user engagement.

  • Don’t use an Overlay Button in a non-scrolling view, use a Button instead.
  • Consider a large Overlay Button when there's a clear action to do in the user flow.
  • Don't use a large Overlay Button if it will hide important UI when scrolling. Instead use a normal sized Overlay Button.

Textual Overlay Button

This type of Overlay Button can be more effective where an icon alone might be too ambiguous in the View.

  • Don’t use a Textual Overlay Button in a non-scrolling view.
  • If a primary action is needed in a non-scrolling View, use a Button instead.
